Steel Roof Trapezoid Panel
Roll Forming Machine
| Product name | Steel Roof Trapezoid Panel Roll Forming Machine |
| NO. | Items | Parameters | Remark |
| 1 | Suitable Material | Type | GI/PPGI/AL | |
| | | Width | 1000/1200/1220/1250mm | Custom |
| | | Thickness | 0.40-0.70mm | |
| 2 | Product Specifications | Length | Any length | |
| | | Length Tolerance | ±2mm/6mm | |
| 3 | Working Speed | 25 m/min (10 piece per min as 8 feet per piece) | Standard machine |
| 4 | Control System | Mitsubishi/Siemens PLC& transducer | Custom |
| 5 | Total Power | 4+4KW | |
| 6 | Total Weight | About 3.8T | Up to final design |

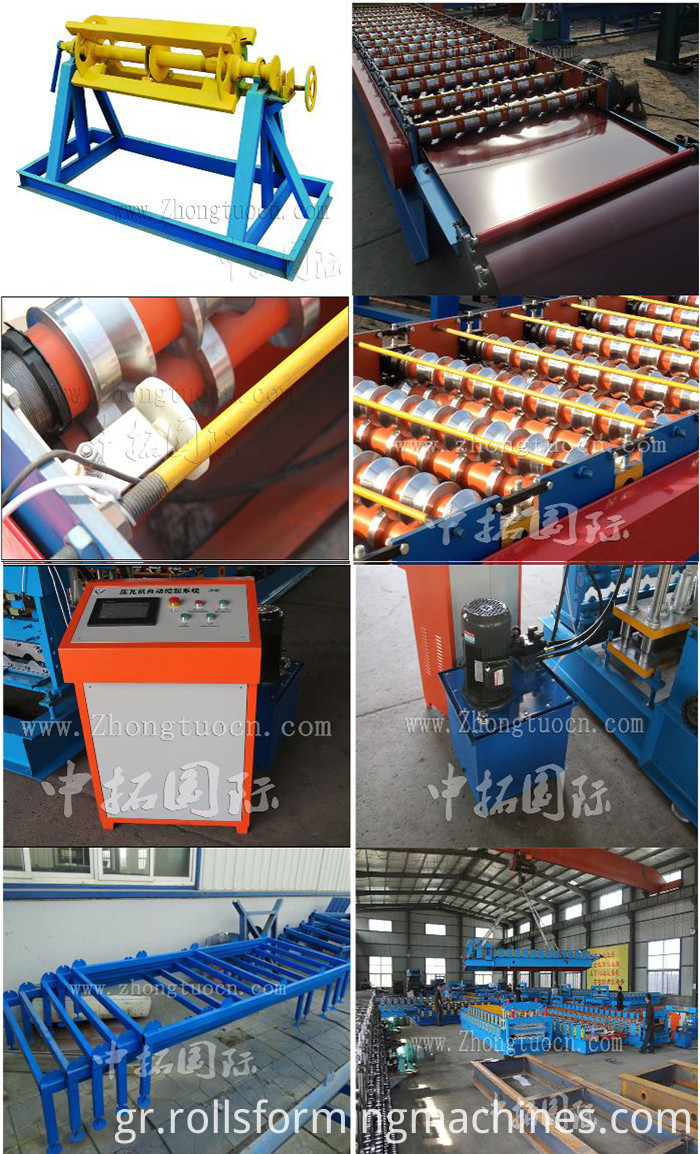

Production process of Trapezoid Panel Machine:
Uncoiling→Feeding material into machine→Roll forming→Measuring length→ Step formed→ Auto cutting→Products receiving
Length of the main part:About8500х1650х1500mm
Weight of main part:About 5.5 t
Voltage:380V/50HZ3Phase (as customer`s request)
Roller fixer:Middle plate welded
Frame:350 H steel welded
Frame thickness:16mm
Drive mode:Chain
Material of rollers:45# steel, surface hard chromium plating.
Material of shafts:45# steel
Diameter of shafts:Φ80mm
Number of rollers:15 rollers
Main power:5.5kw
Packing and shipping:
| Packaging Details: | 1. one 20ft container for loading one set machine with Manual Decoiler; 2. the whole Wiped Anti Rust Oil, PLC controller covered by foam film; 3. Spare parts and some small parts packed in plastic tooling box; 4. All Components Fixed by steel wire with Container. |
| Delivery Detail: | 45 days after receipt of buyer's deposit |
Service
a.If buyers visit our factory and check the machine, we will teach you how to install and use the machine,and also train your workers/technician face to face.
b.Without visiting, we will send you user manual and video to teach you to install and operate.
c.If buyer needs our technician to go to your local factory, please arrange board and lodging and other necessary things.
2.After Sevice
3.a.One year guarantee for whole machine.
b.24 hours technical support by email or calling
c.If there is any problem found of the machine, we will repair it for free in one year.
Company information
factories and associated nterprises, concerning with the design, development and production of cold roll forming machines,material of building.
It is located in northwest of CangZhou, as a long history of cold roll forming machine production base. All products comply with international quality standards
and are greatly appreciated in variety of different markets throughout the world, such
as Asia, Africa, Europe,South America, and Australia and so on.
Looking for ideal Trapezoid Panel Machine Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Roll Forming Machines are quality guaranteed. We are China Origin Factory of Roof Metal Sheet Machine. If you have any question, please feel free to contact us.
