Zhongtuo steel pipe/carbon steel pipe processing tool

Zhongtuo steel pipe/carbon steel pipe processing equipment

Zhongtuo steel pipe/carbon steel pipe processing equipment could be used to make steel pipe, carbon steel pipe by welding method. The material thickness could range from 0.5-5mm, the pipe diameter range could from 10-127mm. These pipe machine could be used to make squre pipe, oval pipe, round pipe and other noncommon shape pipes.

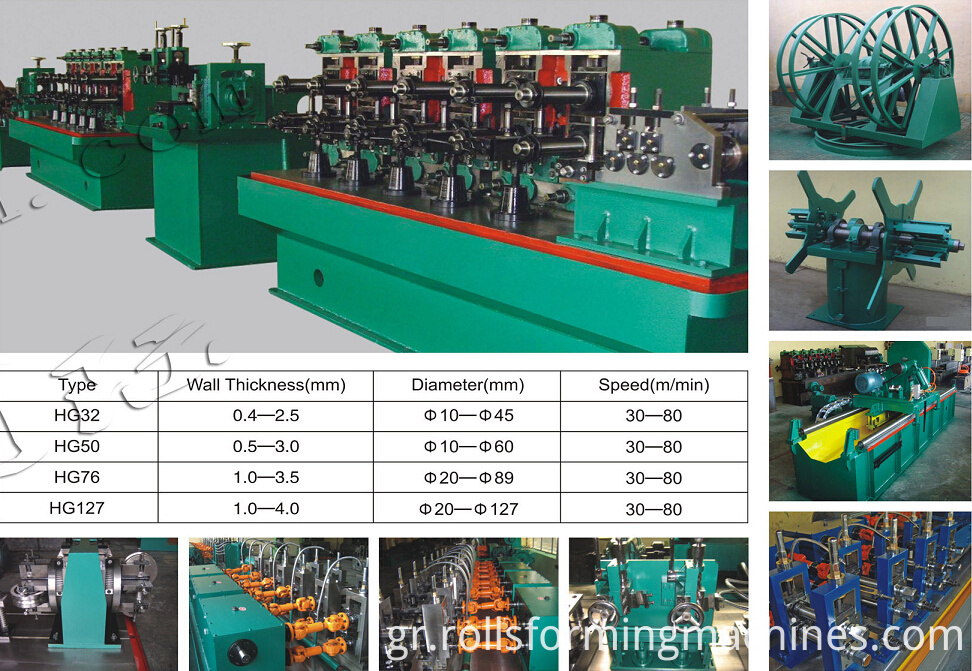

Machine HG 32

This HG32 pipe making equipment could be used to make the following specification.

Wall thickness from 0.4-2.5mm

Pipe diameter: 10-45mm

Round pipe: Max diameter pipe-45mm diameter. Min diameter-10mm

Square pipe: Max diameter pipe-35x35mm Min size 10x10

Rectangle: Max diameter for example: 30x40mm 10x10mm

Price: 75000 USD

Mould: 3200 USD one set

Machine HG50

This HG50 pipe making equipment could be used to make the following specification.

Wall thickness from 0.5-3mm

Pipe diameter from 10-60

Round pipe: Max diameter pipe-60mm diameter. Min 10mm diameter

Square pipe: Max diameter pipe-47x47mm Min square pipe 10x10mm

Rectangle: Max diameter for example: 30x60mm Min is 10x10mm

Price: 100.000 USD

Mould: 3500 USD one set

Machine HG76

This HG76 pipe making equipment could be used to make the following specification.

Wall thickness from 1.0-3.5

Pipe diameter from 20-89

Round pipe: Max diameter pipe-90mm diameter. Min is 20mm diameter

Square pipe: Max diameter pipe-70x70mm Min is 20x20mm

Rectangle: Max diameter for example: 50x90, 40x100, 30x110mm Min 20x20mm

Price: 125.000 USD

Mould: 4500 USD

Machine HG127

This HG127 pipe making equipment could be used to make the following specification.

Wall thickness from 1.0-4.0

Diameter from 20-127mm

Round pipe: Max diameter pipe-127mm diameter. Min is 20mm diameter

Square pipe: Max diameter pipe-100x100mm Min is 20x20 diameter

Rectangle: Max diameter for example: 110x90, 800x1200, 70x130mm Min is 20x20 diameters.

Price: 270.000 USD

Moulds: 15800 one set (the smallest one)

Looking for ideal Pipe Processing Tool Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Pipe Making Equipment are quality guaranteed. We are China Origin Factory of Carbon Steel Pipe Mill. If you have any question, please feel free to contact us.

Product Categories : Welded Tube Mill > Welded Pipe Machine
