Guard Rail Roll Forming Machine
Guard Rail Roll Forming Machine
Guard Rail Roll Forming Machine
Guard Rail Roll Forming Machine
Guard Rail Roll Forming Machine

Guard Rail Roll Forming Machine

Payment Type: L/C,T/T,D/P,Western Union,D/A
Incoterm: FOB
Min. Order: 1 Set/Sets
Delivery Time: 25 Days

Contact Now

Basic Info

    Model No.: CNZT-002

    Main-length: 20.5*1.2*1.5m

    Machine Weight: 15.5 Ton

    Frame: 400# Steel

    Transmission: Gearbox

    Shaft Materia: 70

    Roller Material: GCR15, After Quenching, And After Chrome Wheels.

    Shearing Blade Material: Cr12 After Quenching.

    Rolling Station: 20

    Main Power: 45kw

    Shear Error: + 2mm

Additional Info

    Packaging: As the Customer's Requirement

    Productivity: 10-15m/min

    Brand: ZHONGTUO

    Transportation: Ocean,Land

    Place of Origin: China

    Supply Ability: 30 sets/month

    Certificate: ET, ISO9001

Product Description

Guard Rail Roll Forming Machine

A metallic guardrail barrier comprises a sustaining post, a spacing member extending parallel to the ground, secured at one side to the sustaining post and carrying at the other side a supporting member to which the rail is secured.

guardrail

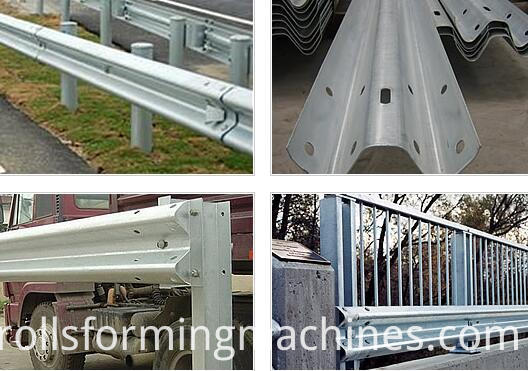

Two Wave Highway Guardrail Forming Machine also known as highway guardrail forming machine, can be widely used for making a variety of guardrails, such as highway guardrail, fence and pasture fence.The highway guardrail forming machine is mainly consisted of uncoiler, punching system,feed leading table, main forming machine, cutting device, hydraulic station and computer control system.

Highway Guardrail Forming Machine


Highway Guardrail Forming Machine

Working process:

Two Wave Highway Guardrail Machine

Detailed information of Two Wave Highway Guardrail Machine:

Hydraulic decoiler

Usage: It is used to support the steel coil and uncoil it in a turntable way.Passive uncoil pulled by roll forming System.

1.ID:500-550mm

2. Coil width:500mm

3. Loading ability:5000kg

4. Hydraulic power:3kw

5.Motor:3kw

Highway Guardrail Forming Machine

Feeding and leveling part

1. Roller material after quenching

2. 9 rows station for leveling: 4 5

3. The diameter of raw material 95mm ,45 steel after quenching

4. Feed a side wheel GCR15 raw materials, after quenching

Guardrail Forming Machine

Punching and shearing part

1.Hydraulic punching, raw material after quenching Cr12,Which can be welded, which need to bolt

2.Shearing blade material:Cr12 after quenching.

3. Shear error: +/- 2mm

Two Wave Highway Guardrail Forming Machine

Feeding coil part

1. Feeding coil table:

2. Main power:3kw

3. Length:6M

Two Wave Highway Guardrail Machine

Roll Forming Machine

Advantage: to make sure long time using, working steady and high speed.

1. Main-length: about 20.5*1.2*1.5m

2. Machine weight: 15.5 Ton

3. Voltage: customer choice

4. Fix wheel types: medium plate

5. Frame: 400# steel

6. Transmission: Chain

7. Shaft material: 45 steel after adjusting treatment, the diameter of 100mm, precision machining

8.Roller material: GCR15, after quenching, and after chrome wheels.High strength bolt

9. Rolling station:20 stations

10.Main power:45kw

Highway Guardrail Forming Machine

Hydraulic system

1.Power: 18.5kw

2.Hydraulic oil type: 46#

3.Component: the system includes a set of one or two sets of hydraulic oil tank, hydraulic pump, hydraulic pipe line four, two sets of solenoid valve.

Highway Guardrail Forming Machine

Electrical system

Advantage:

1.Panasonic 1.5.7 inch touch screen is Japan's Panasonic brand, to ensure high speed and stability, accuracy and service life.

2.Panasonic PLC, Panasonic inverter

3. automatic fixed length

4. automatic counting

Automatic stop shear length control. Equipped with 5 movable switch, fuse, radiator, transformer and convenient operation and safety of leakage protector.

Two Wave Highway Guardrail Machine

Looking for ideal Guard Rail Roll Forming Machine Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Machine are quality guaranteed. We are China Origin Factory of Roll Forming Machine. If you have any question, please feel free to contact us.
